Introduction X8 X9
CAD Video Training Products - Click Here

Why read the book when you can see the movie”

Interface Introduction To Mastercam  X8 & X9

Interface Introduction To Mastercam X8

Essential Information for anyone who uses Mastercam  X8 or X9. You'll be amazed at all of the little things you didn't know and how much more you can accomplish. Essential information for the serious Mastercam programmer. First Time Users and Long Time Users Will Both Find This CD Informative.

No Internet Connection Required. No Monthly Subscription. The CD Never Expires. Watch These Lessons Any Time That’s Convenient For You.

Qty               $110

Bracket_Solid2

Covers everything you need to get started drawing parts & making toolpaths. Detailed information about the Mastercam X interface and hotkeys.  These lessons will explain the little things that make you more productive. If you're serious about being a Mastercam programmer, then this is the CD you want to start with.

Drilling_Verify2

Mastercam Interface.

* Mastercam Screen areas
* Mouse/Interface Control
* Hotkey Short Cuts
* Geometry/Drawing Parts
* Live Entities (Lines, Arcs, Points)
* Trim, Fillet, Join & Break Entities
* Transformations (Rotate, Offset, etc...)
* Coordinate Input Options
* FastPoint, AutoCursor & Relative Picks
* Work Offset/Zero Shift (WCS-G54)
* Chaining/Selection Options
* Working With Planes
* Changing Entity Colors
* Changing Entity Levels
* Geometry Selection
* Data From The Model
* Solid Model Basics
* Importing CAD files

Start with the part as a billet and machine the inside with G54 Work Offset.
Next, plan the fixture for the 2nd operation and set your G55 Work Offset. Let Mastercam determine your raw stock size

Planes_Sm

Prepare For Mastercam Certification With....
    5 Hours of Video with Audio Narration.
         48 Lessons.
               7 Different Projects.

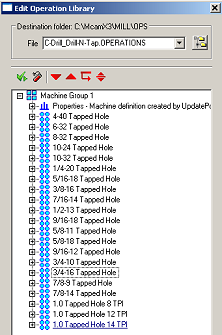

The CD includes a Tapping Operations Library for machining tapped holes, quickly and efficiently.

Learn things about the Mastercam Interface you never knew we're there. Covers basic geometry construction and 2D Toolpaths, as they apply to typical, everyday machining. Includes extensive information on Drilling for a variety of part types. Learn how to select holes by Color, Line style, Level and Size.  Create reusable toolpath operations and make your own personal Toolpath Operations Library. Create Construction Planes, Work Coordinate Systems, Fixture Offsets and Shift Zero Points.

Ops_Lib2
Transform_Sm1

Transformations make it quick and easy to create complex geometry. We Cover Mirror, Rotate & Dynamic Translations

Mastercam Toolpaths Functions.

* Introduction To 2D Toolpaths
* Dynamic Roughing Toolpath
* Setting Stock For Odd sized Parts
* Analyzing The Model (corners, depths, etc...)
* Pocketing
* Drilling, Tapping & CT. Boring.
* Copying Operations
* Creating/Saving Operations Libraries
* Includes Operations Libraries
* Create Machine Groups
* Create Toolpath Groups
* Multiple Planes
* Shifting Zeros
* Work Offsets
* Contour Toolpaths
* Incremental / Absolute
* Rapid Clearance Control
* Lead In / Lead Out

Drilling_Sm1

Personal, Professional Training
Anytime You Want It.

Qty               $110

No Internet Connection Required. No Monthly Subscription. The CD Never Expires. Watch These Lessons Any Time That’s Convenient For You.

This CD Rom runs in 1080 x 800 resolution on any PC with Internet Explorer 9+ or Firefox Browsers. Microsoft Windows XP, Vista, Win 7 & Win 8 Compatible. 4.8 hours of video, with audio narration. A sound card & Speakers are required.
