2D High Speed Toolpaths  For  Mastercam  X8 & X9

2D High Speed Toolpaths & Custom Menu Creation.

Mastercam’s 2D HST toolpaths are the foundation of today’s  innovative machining concepts. If you're a Job Shop looking to improve efficiency, reduce cutting time and get better utilization  of your tooling, 2D HST is the answer.  First Time Users and Long Time Users Will Both Find This CD Informative.

No Internet Connection Required. No Monthly Subscription. The CD Never Expires. Watch These Lessons Any Time That’s Convenient For You.

Qty              $175

X8_2DHST-Part2B_Sm1

Covers everything you need to get started making toolpaths. Detailed information about the Mastercam 2D High Speed Toolpaths, hotkeys, importing CAD files, Custom Toolbars, Custom Menus, Custom Configurations and Verification options. Includes sample parts in Parasolid and Mastercam formats. Important information to prepare for Mastercam Certification.

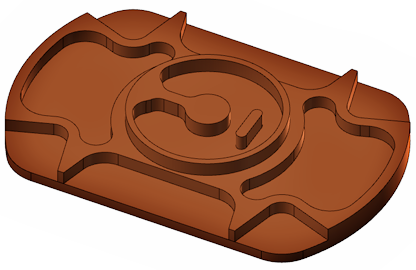

X8_2DHST-Part1C_Md1

Prepare For Mastercam Certification With....
  4 Hours of Video with Audio Narration.
        35 Lessons.
              6 Different Parts.
                     9 Projects.

High Speed Toolpaths Covered.

* Introduction To 2D HST
* Parameter Overview
* 2D HST Area Mill
* 2D HST Peel Mill
* 2D HST Blend Mill
* 2D HST Dynamic Area
* 2D HST Dynamic Rest
* 2D HST Dynamic Core
* 2D HST Dynamic Contour
* 2D HST Open Pockets
* 2D HST Pockets w/ Islands
* 2D HST Air Regions
* 2D HST Entry Motion Options

Mastercam Control.

* Mouse/Interface Control
* Hotkey Short Cuts
* Optimizing Cycle Time
* Relative Coordinate Picks
* WCS/Zero Shift (G54-G55)
* Chaining/Selection Options
* Working With Planes
* Changing Entity Colors
* Changing Entity Levels
* Geometry Selection

Chain_Md1
HeatSink_Sm1
X8_2DHST-Part2C_Sm1

These lessons will apply the 2D HST Toolpaths to your everyday machining. Includes many "real world" part examples, demonstrating how to machine on multiple planes (tops and bottoms) of a single part. Creating Construction Planes, Work Coordinate Systems, Fixture Offsets, Shifting Zero and Multiple Toolpath Groups in the Operations Manager.

Other Functions Covered.

* Multiple Machine Groups
* Multiple Toolpath Groups
* Multiple Planes
* Shifting Zeros
* Work Offsets
* Contour Toolpaths
* Incremental / Absolute
* Rapid Clearance Control
* Lead In / Lead Out
* High Speed Cutting Logic
* Data From The Model
* Linking Parameters

RightClickMenu_Md1

* Custom ToolBars
* Custom Right Click Menus
* Custom Configurations
* Configuration Backup

PeelNBlend1_Sm1
X8_2DHST-Part3A_VSm1

Personal, Professional Training
Anytime You Want It.

Qty              $175

No Internet Connection Required. No Monthly Subscription. The CD Never Expires. Watch These Lessons Any Time That’s Convenient For You.

This CD Rom runs in 1080 x 800 resolution on any PC with Internet Explorer 9+ or Firefox Browsers. Microsoft Windows XP, Vista, Win 7 & Win 8 Compatible. 4 hours of video, with audio narration. A sound card & Speakers are required.
