2D HST Milling
CAD Video Training Products - Click Here

Why read the book when you can see the movie”

2D High Speed Toolpaths  For  Mastercam  X5 & X4

X5_2DHDST-CD_Md1

Mastercam’s powerful 2D High Speed Toolpaths are covered in detail on this comprehensive training CD. Starting with an overview of the Mastercam Interface, geometry concepts and  toolpaths, the training moves on to more complex 2D HST milling concepts.   First Time Users and Long Time Users Will Both Find This CD Informative.

No Internet Connection Required. No Monthly Subscription. The CD Never Expires. Watch These Lessons Any Time That’s Convenient For You.

Qty              $175

Includes Samples For  Mastercam  X5 & X4  Users

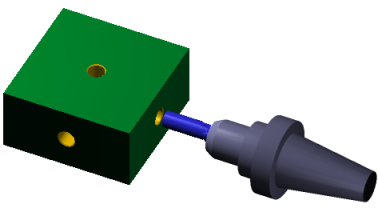

Includes many "real world" part examples. This CD demonstrates how to machine on multiple planes (tops and bottoms) of a single part. Creating Construction Planes, Work Coordinate Systems, Fixture Offsets, Shifting Zero and Multiple Toolpath Groups in the Operations Manager.

           55 Lessons.
                      8 Different Parts.
                                4 - 1/2 Hours of Video.

Interface Functions Covered.

  • Mastercam Screen Areas
  • Screen Commands
  • Geometry Construction
  • Live Entities
  • Data Input Options
  • Function Key Commands
  • Shortcut Key Commands
  • Geometry Transformations
  • Chaining/Selection Options
  • Working With Planes
  • Changing Entity Colors
  • Changing Entity Levels
  • Geometry Selection - All & Only
  • EA Manager

Learn how to create and reuse toolpaths, with Operations Libraries.  Create new Planes and then Import the saved Operations onto multiple Planes. Perform multiple operations like  Center Drill, Drill and Tap in one process.
Includes  Operations  Libraries For X5 & X4.

High Speed Toolpaths Covered.

  • Introduction To 2D HST
  • Parameter Overview
  • 2D HST Core Mill
  • 2D HST Area Mill
  • 2D HST Rest Mill
  • 2D HST Peel Mill
  • 2D HST Blend Mill
  • 2D HST Dynamic Area
  • 2D HST Dynamic Rest
  • 2D HST Dynamic Core
  • 2D HST Dynamic Contour
  • 2D HST Open Pockets

Feature Based Machining.

  • Learn To Use FBMachining
  • Set Toolpath Options
  • Set Tool Size Ranges.
  • Limit Operations By Plane
  • Include/Exclude Roughing
  • Control Rest Roughing
  • Reduce Operation Creation
  • Edit Operations
  • FBM Drilling
  • Create Tapped Holes
  • Mapping Tapped Holes

Personal, Professional Training
Anytime You Want It.
Includes Files For X5 & X4 Users

Qty              $175

Other Functions Covered.

  • Multiple Machine Groups
  • Multiple Toolpath Groups
  • Multiple Planes
  • Shifting Zeros
  • Work Offsets
  • Contour Toolpaths
  • Pocket Toolpaths
  • Remachining Toolpaths
  • Drilling/Tapping
  • Operations Libraries
  • Incremental / Absolute
  • Rapid Clearance Control
  • Lead In / Lead Out
  • High Speed Cutting Logic
  • Data From The Model
  • Linking Parameters

No Internet Connection Required. No Monthly Subscription. The CD Never Expires. Watch These Lessons Any Time That’s Convenient For You.

This CD Rom runs in 1024 x 768 resolution. Easy to run on any PC. Contains 4-1/2 hours of video with audio narration.  A sound card & Speakers are required.
